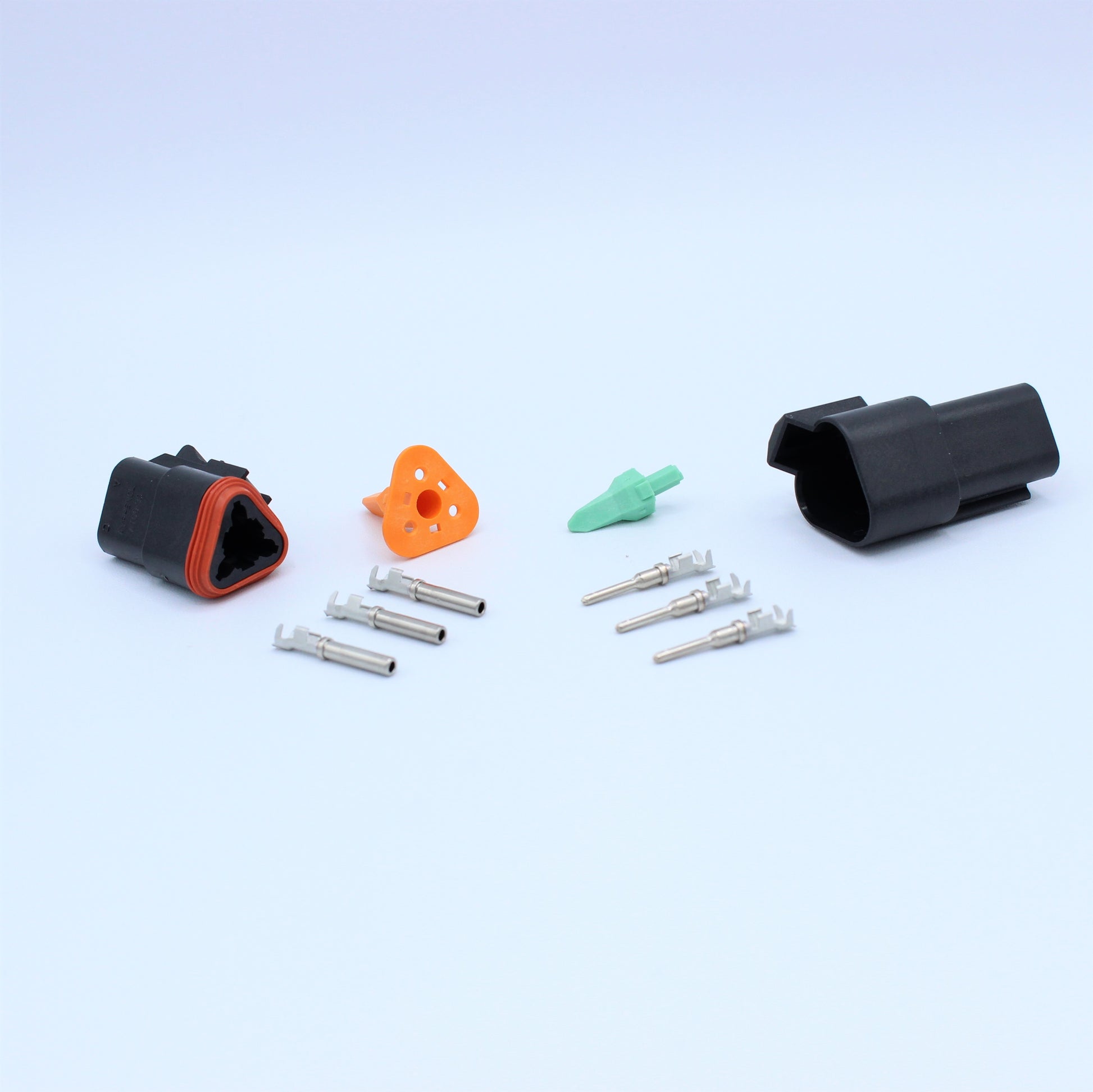

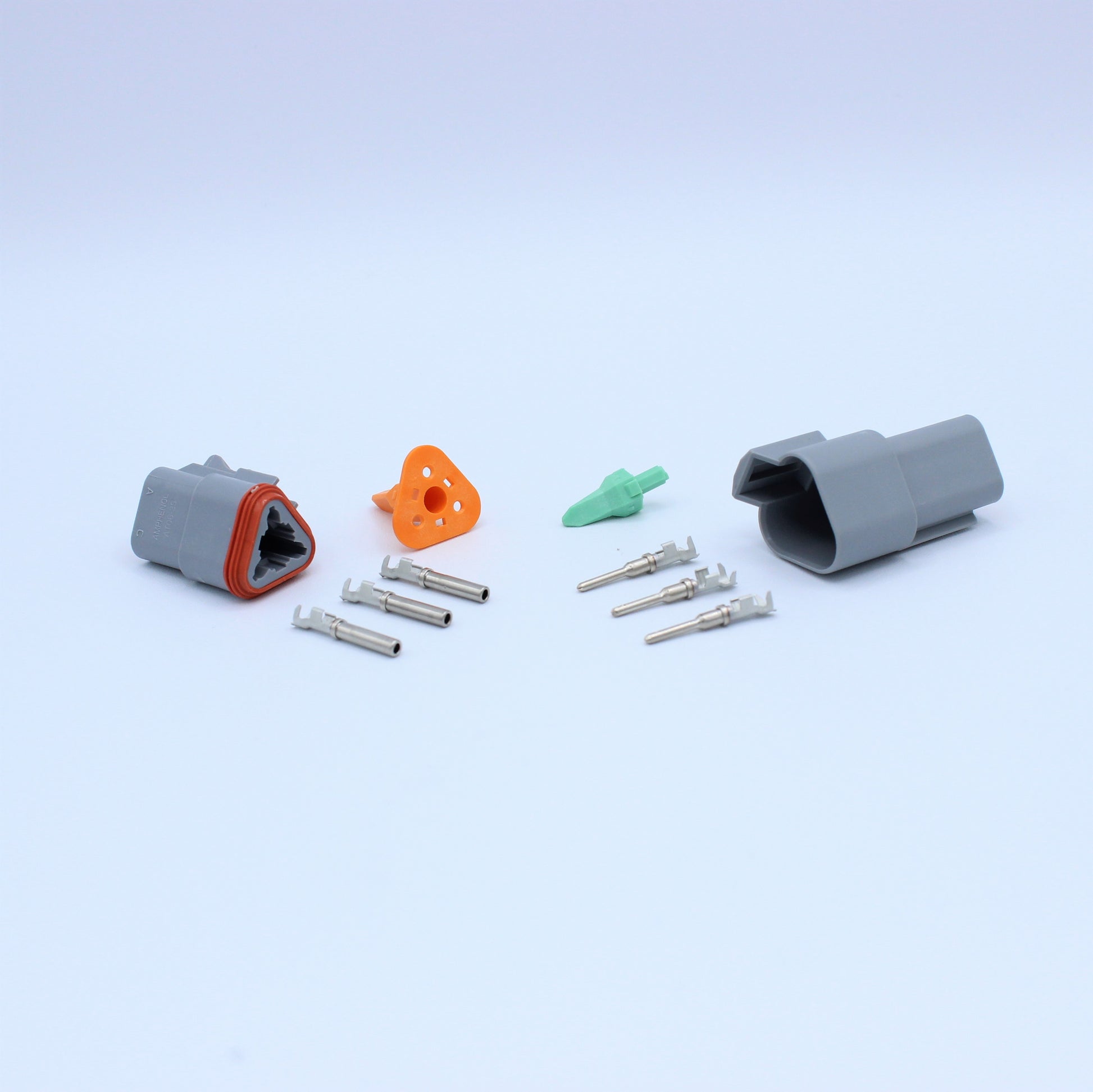

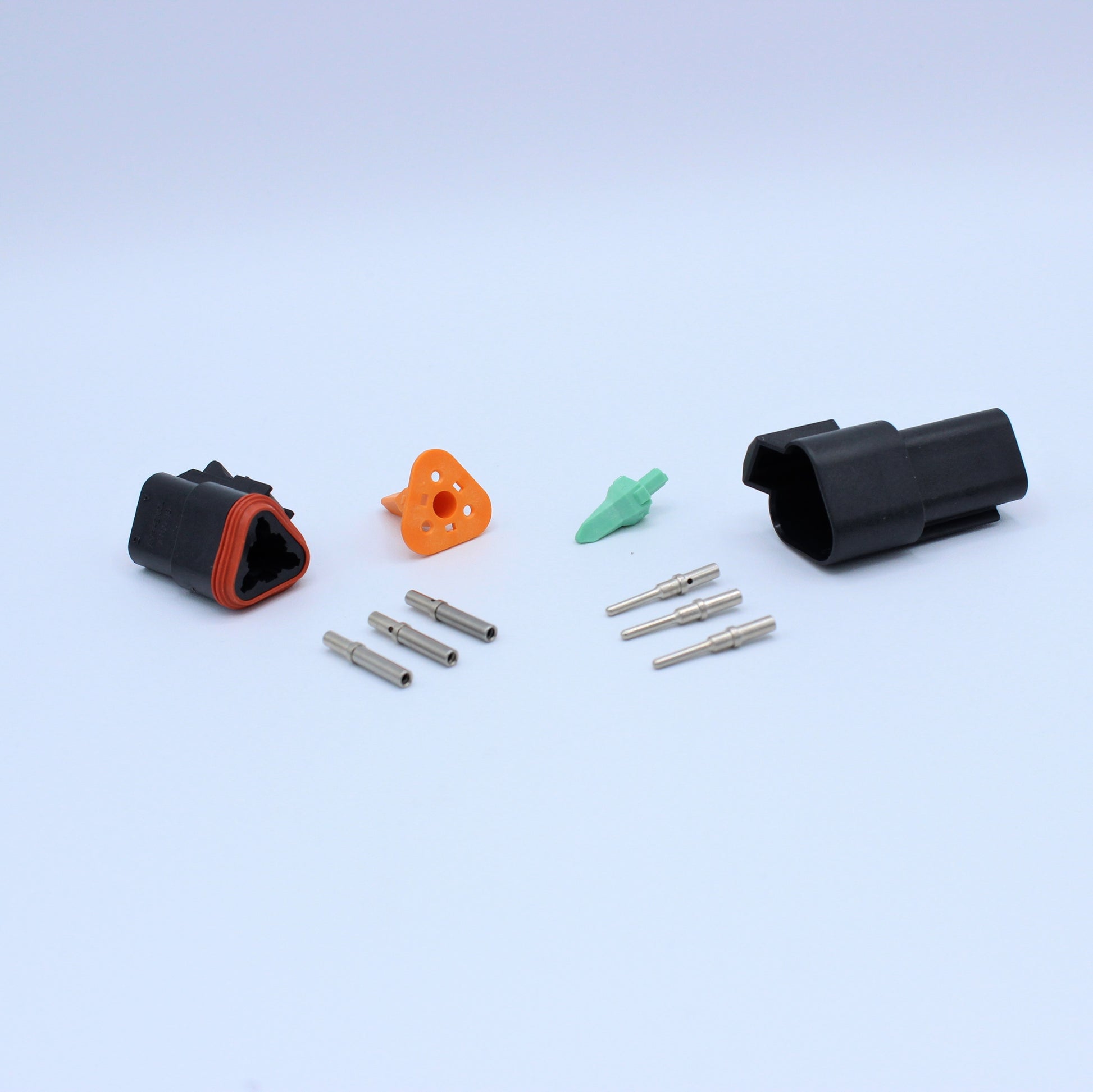

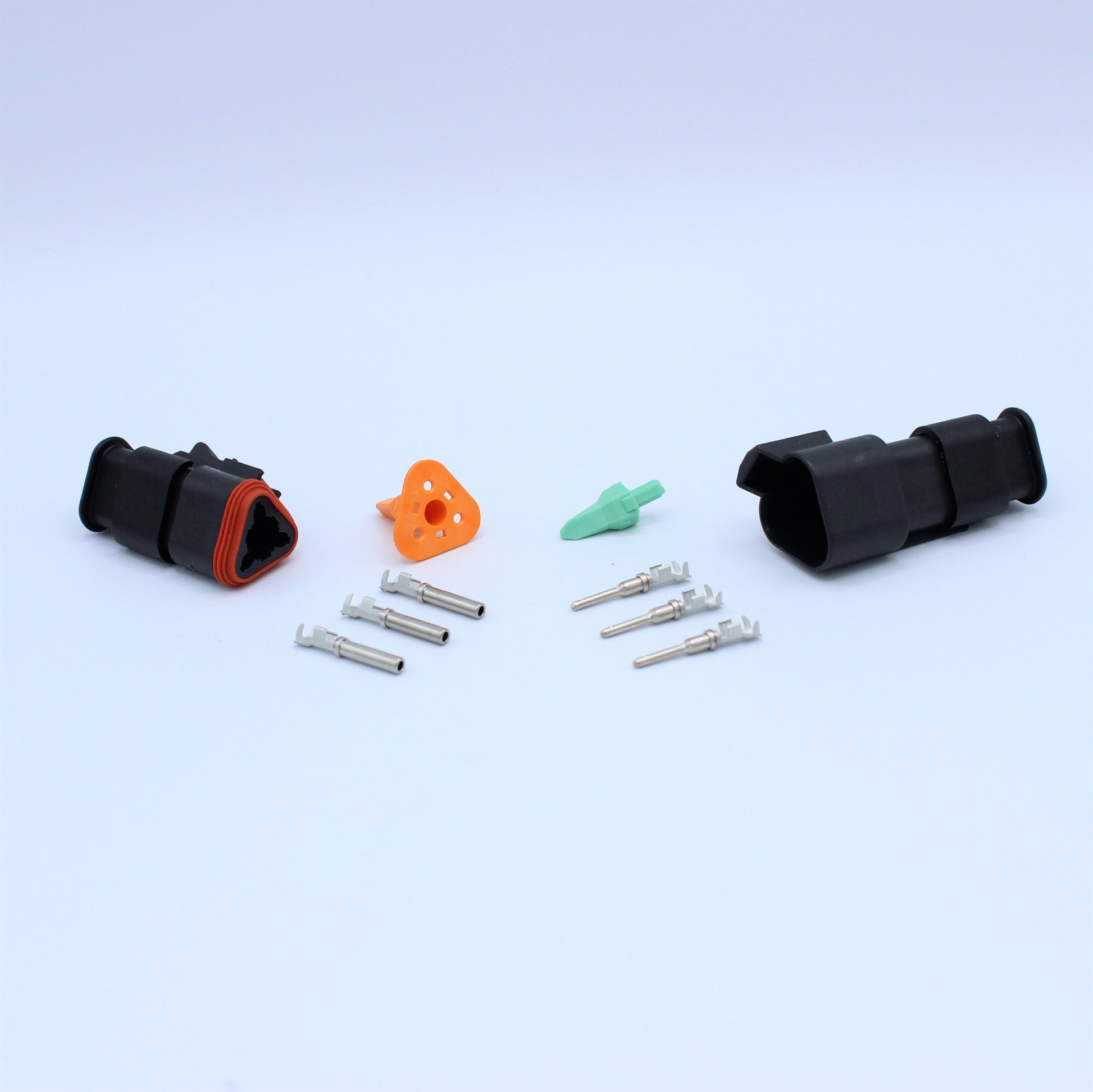

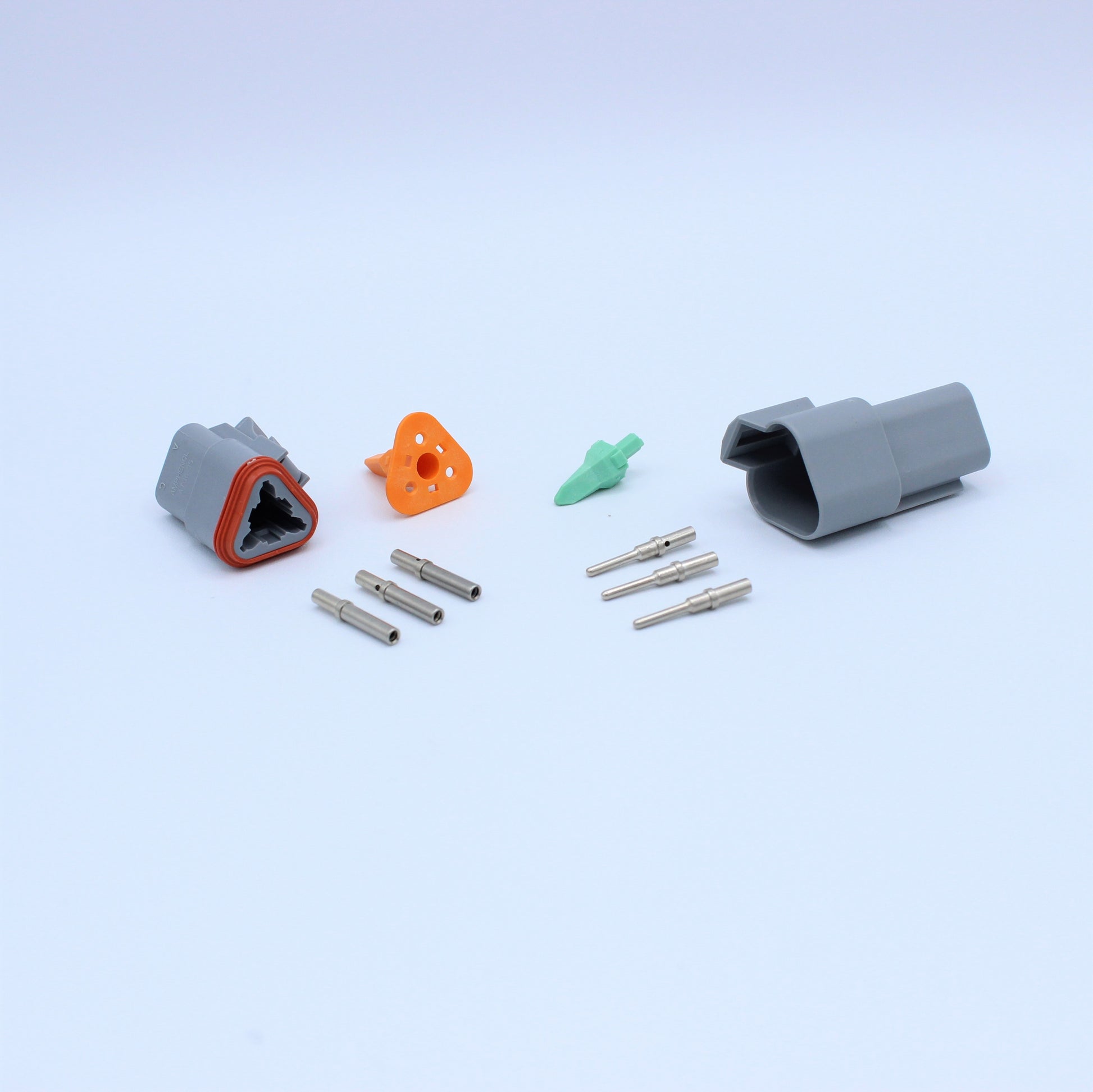

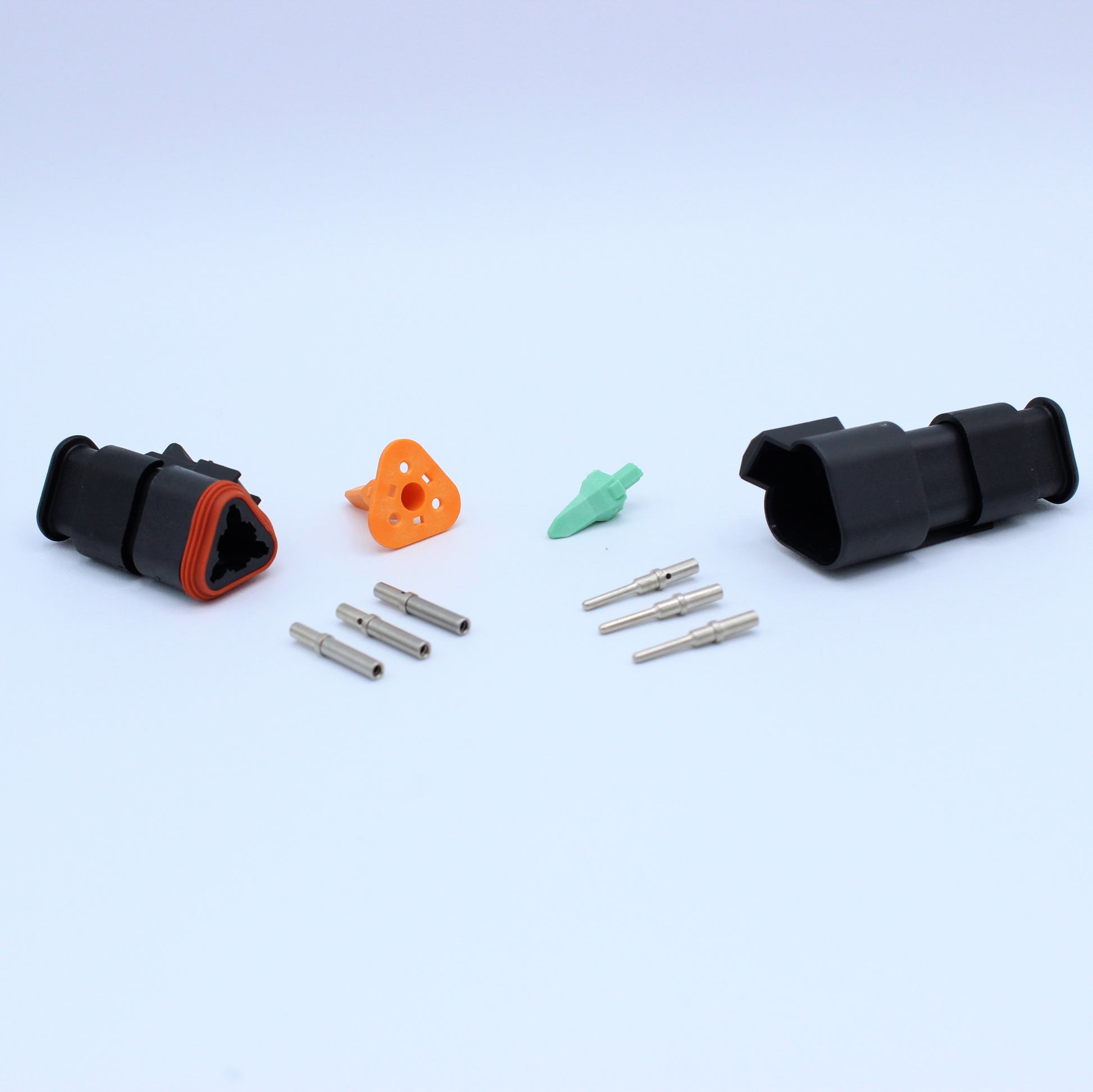

AT Connector 3 way

AT Connector 3 way

Regular price $11.00 CAD
Regular price Sale price $11.00 CAD
Sale Sold out
Terminal Type
Color
Shrink Boot Lip

The standard in aftermarket universal application connectors is Deutsch DT or Amphenol AT. They are completely interchangeable, and our kits use a mix only authentic products of both lines to offer the best combinations.
AT series are rated for a 100 mating cycles, where as common OEM type connectors are only rated for up to 10. They are IP68 water proof and dust proof rated when mated, -55 to 125C (-67 to 257F) temperature handling and safe well past 300V of die electric strength.

AT connectors use a Size 16 contact. Depending on what crimper you have, select either stamped (for open barrel F type crimpers) or solid (for closed 4 indent crimps).
Size 16 contacts are sized for 20-16 AWG wire.

They are rated for 13 amps continuous for each contact. These are ideal for a wide range of uses, such sensors or lights or solenoids etc. For larger current loads please see ATP connector options or for lesser loads and smaller footprint see our ATM connector options.

Select from grey or black colours, terminal type and if you want a heat shrink lip option which is great for additional sealing and strain relief requiring installations.
